Product specifications

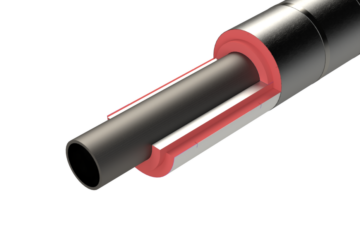

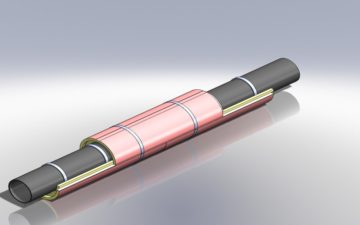

ContraFlame® MS400 half-shells are pre-cast insulation and passive fire protection for pipes with an Hp/A 300 and lower wall thickness schedule 10 or greater. A removable floating system, they have been tested to ensure they are compatible with other insulation systems to meet the required U-value. The typical system thickness is 60 mm including the vapour barrier, weighing 4.47 kg/m² without the stainless-steel cladding.
- Operational life of over 25 years
- Operational temperature range of -196 °C and +150 °C
- Provides both cryogenic spill protection and jet fire protection for 60 minutes
- Fire-rated to JF60
- Low thermal conductivity k-value – 0.032 W/(m K)
- Type Approval certification
- Suitable for the splash zone
- Designed to resist multiple cryogenic spillages.
Tested for use in the toughest conditions
Product applications
AIS has a range of passive fire protection solutions that can be used in applications worldwide to protect vessels and infrastructure onshore and offshore.
-325x203.jpg)

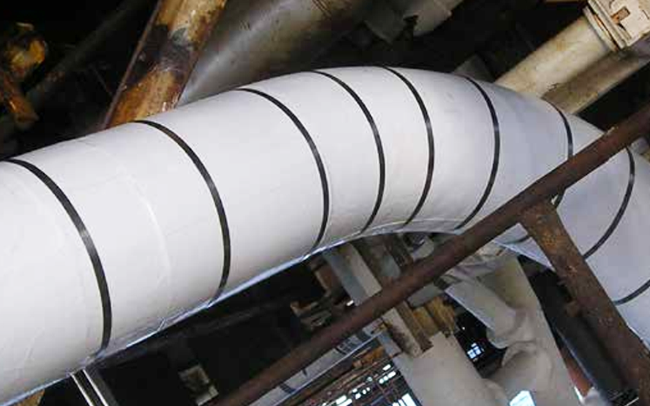

Pipes manifolds and flanges
Fully bonded phenolic coating system, bespoke pre-cast shells and jackets.
