Product specifications

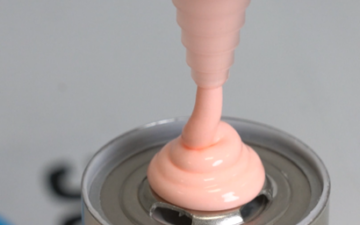

ContraFlame® F40 is a low viscosity, self-levelling potting foam which has a 10:1 (by volume) formulation and is designed to be potted or poured. The formulation is ultra-lightweight and will offer a density of around 0.6 g/ml when cured. When exposed to high temperatures the material rapidly forms a tough char that will resist erosion by high velocity or turbulent gasses, while continuing to provide insulation to protect the substrate.
- Easy application and efficient replacement to pre-formed mica products
- Cures at room temperature within 30 minutes
- Tested and proven protection of 46xx cells and >150 Ah prismatic cells
- Extreme resistance to flames and rebounding particles
- Low outgassing formulation
- Superior adhesion on metals allows direct application onto the cells
- Low to no smoke and toxicity during a fire
- Mass-scale application tested and verified at mixing and dosing equipment manufacturers.
Tested for use in the toughest conditions
Product applications
AIS has a range of passive fire protection solutions that can be used in applications worldwide to protect battery packs and related applications.
Battery module anti-propagation
Preventing thermal runaway by containing propagation to a single cell within a module.
Cylindrical cell
• Thermal barrier solutions and rebound protection
• Cell-to-cell thermal Insulation and protection
• Reducing chain reaction risk through rebound protection solutions
• All solutions are mica-free and can be made locally
• Tested and verified with live cells (1865 to 46xx)
Prismatic cell
• Thermal barrier solutions, cell divider and rebound protection
• Cell-to-cell thermal insulation and protection
• Reduce the risk of a chain reaction through rebound protection solutions
• Mica-free and can be made locally
• Tested and verified with live cells (93 Ah to 234 Ah)
